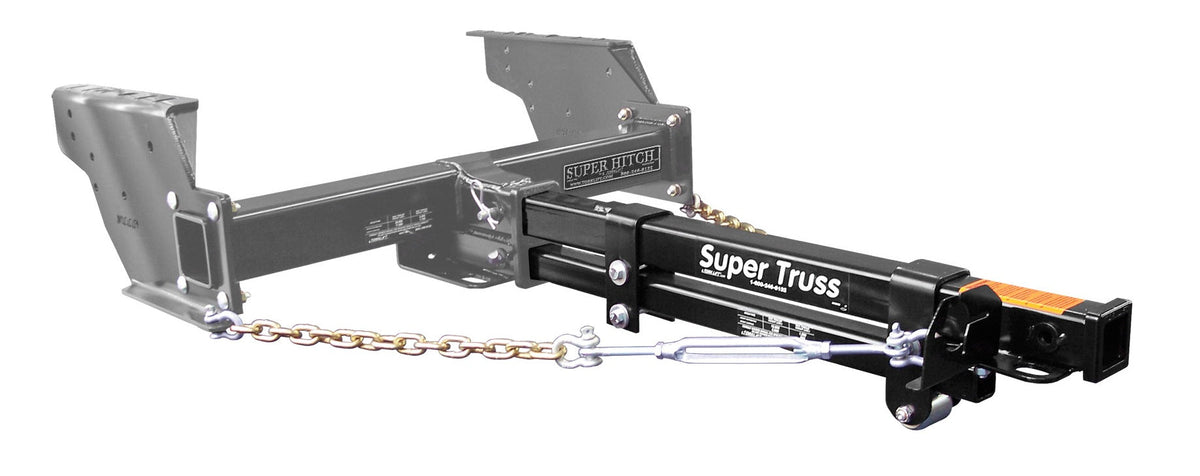

TorkLift E1560 SuperTruss 60-Inch Dual-Receiver Hitch Extension

TorkLift E1560 SuperTruss — 60 Inches

The TorkLift E1560 is a 60-inch SuperTruss dual-receiver hitch extension for a compatible TorkLift SuperHitch. It reaches a trailer connection beyond the rear overhang of a truck camper. At five feet, it is intended for a camper with an unusually long rear overhang and calls for particular attention to clearance and ratings. TorkLift's length-specific table sets this model apart from other SuperTruss sizes: 5,000 lb trailer / 500 lb tongue maximum in weight-carrying use, or 10,000 / 1,000 lb with a correctly configured weight-distribution system. These figures are limits for the listed extension arrangement, not a promise that every truck and hitch can tow that load.

Confirmed Fitment

• This SuperTruss uses the upper and lower openings of an application-appropriate TorkLift SuperHitch. It is not a single-shank extender for an ordinary factory hitch. Check the exact SuperHitch model and its current extension-capacity chart.
• Measure the camper's rear overhang and hitch reach with the camper on the truck. Select the shortest approved extension that clears the camper and permits the required trailer turning and safety-chain geometry; this part has a nominal 60-inch extension length.
• Verify the lowest rating among truck, installed SuperHitch, E1560, ball mount, weight-distribution equipment and trailer. Specialized hitch models can carry lower extension ratings than the published maximum; inspect the exact application matrix before towing.

Key Features

• Dual-shank arrangement works with TorkLift's SuperHitch system and its lateral-support safety-chain design to help control movement at the extended towing point.
• The 60-inch length is a distinct option; a neighboring length has different capacity and often a different matching wiring pigtail.
• TorkLift lists W6060 as the matching SuperTruss wiring harness, with an actual pigtail length of 68 inches; electrical wiring is a separate accessory.
• Made in the USA and backed by TorkLift's Legendary Lifetime Warranty.

Specifications

Included and Required

One E1560 SuperTruss hitch extension. The vehicle-specific SuperHitch, ball mount, trailer wiring, and any required weight-distribution equipment are separate purchases. Follow the E1560 installation sheet to confirm all extension-specific connection hardware and lateral-support chains are present and correctly attached; do not assume a pictured accessory is included.

Installation and Fitment Notes

• TorkLift publishes the 60-inch row separately: weight carrying 5,000/500 lb and weight distributing 10,000/1,000 lb, trailer/tongue respectively. Weight distribution is required for the higher pair of figures.
• Use the manufacturer's current length and hitch matrix, then follow the exact installation instructions for insertion, retaining pins, lateral-support chains, clearances and trailer coupling. Confirm all components are rated together.
• This is the longest SuperTruss listed in the manufacturer's table. Its 5,000/500-lb WC and 10,000/1,000-lb WD ceilings are lower than those for 24–36 inches; check chain geometry, towing setup and W6060 routing.

Before You Order

Choose E1560 after measuring 60-inch reach and checking the specific SuperHitch capacity. The W6060 wiring pigtail is listed for this length and is separate; a longer extension does not inherit the rating of a shorter one.
