TorkLift E1542 42-Inch SuperTruss Dual-Receiver Hitch Extension

TorkLift E1542 SuperTruss 42-Inch Extension

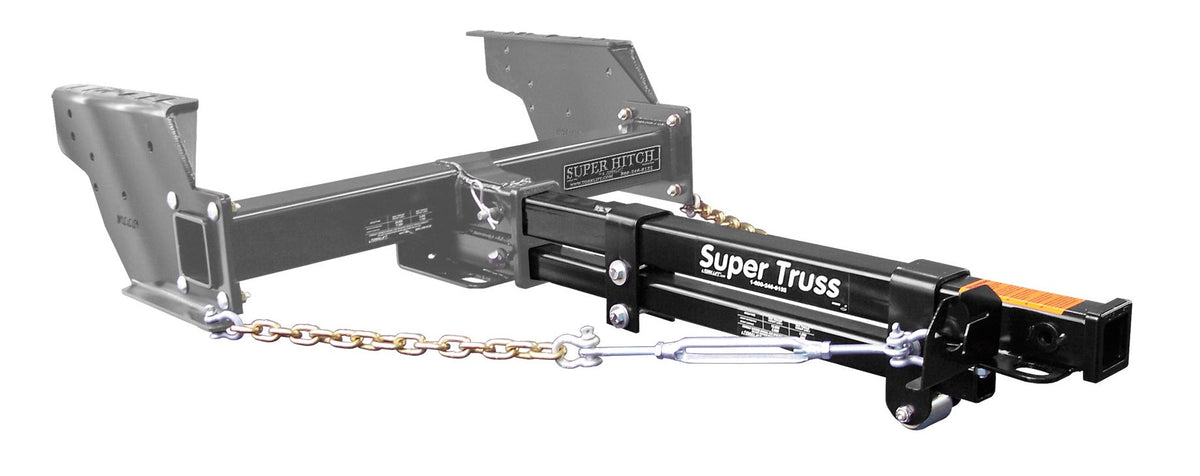

The TorkLift E1542 is a 42-inch dual-receiver SuperTruss hitch extension for a compatible TorkLift SuperHitch towing system. It moves the trailer connection behind the rear overhang of a truck camper while using the SuperTruss lateral-support design. E1542 is the mechanical extension itself, not a complete hitch or a trailer wiring harness. Choose the length by measuring the camper's rear overhang and confirm the rating of the entire truck, hitch, extension and trailer combination.

Confirmed Fitment

• SuperTruss extensions work with compatible TorkLift SuperHitch dual-receiver systems. E1542 is not a generic extension for an ordinary factory single receiver or a Cannon three-inch system.
• TorkLift's extension chart rates E1542 at up to 6,000 lb trailer / 600 lb tongue with weight carrying, or up to 12,000 lb trailer / 1,200 lb tongue with a properly matched weight-distribution system. These are extension maxima, not guaranteed capacity for every truck and hitch.
• Some hitch applications impose a lower capacity or length restriction. The E1542 page footnote says SuperHitch F1005H requires at least a 48-inch SuperTruss because of lateral-chain interference; check the exact SuperHitch matrix before buying E1542.

Key Features

• 42-inch mechanical extension creates trailer-coupling clearance behind a camper overhang when the measured setup calls for that length.
• Dual-extension structure uses TorkLift's patented lateral-support safety-chain arrangement and reinforced hitch-pin locations.
• TorkLift's chart pairs E1542 with the separately selected W6042 seven-pin wiring pigtail for a 42-inch extension route.
• Made in the USA and backed by TorkLift's Legendary Lifetime Warranty.

Specifications

Included and Required

One E1542 42-inch SuperTruss mechanical extension with its system-specific installation hardware. TorkLift describes lateral-support safety chains as part of the SuperTruss design. The SuperHitch receiver, W6042 wiring harness, trailer ball mount and any required weight-distribution equipment are selected separately. Confirm the current package list for the plug-bracket components before promising them as included.

Installation and Fitment Notes

• Measure the camper overhang with the camper installed: TorkLift says the distance from the truck bumper face to the outside of the camper's rear bumper is the minimum extension length. Check turning and ground clearances too.
• Use the lower applicable limit among the E1542 extension, exact SuperHitch, tow vehicle, ball mount and weight-distribution equipment. The 12,000/1,200-lb figure requires weight distribution; do not apply it to weight-carrying use.
• Check the SuperHitch model's compatibility, particularly the F1005H minimum-length note, and install the lateral-support chains and extension according to TorkLift's current instructions. Select W6042 wiring if the trailer connection needs to reach the extended position.

Before You Order

E1542 is a 42-inch SuperTruss extension for a compatible dual-receiver SuperHitch. Confirm overhang measurement and the hitch-specific matrix; the maximum is 6,000/600 lb carrying or 12,000/1,200 lb with weight distribution, subject to lower system limits.
